Warema Control Systems

Warema Central Control Systems

Central control systems from Warema fulfil requirements of all kinds. From the control of single awnings to thousands of sun shading products, our central control systems are ideal for many domestic and commercial applications. From simply controlling the sun shading products based on set times of day to precise programs based on wind speed, wind direction, rain, temperature and several other options.

The basic idea of a central control system is that there is a centralised controller, which is programmed to drive blinds and other connected devices according to the needs of the building.

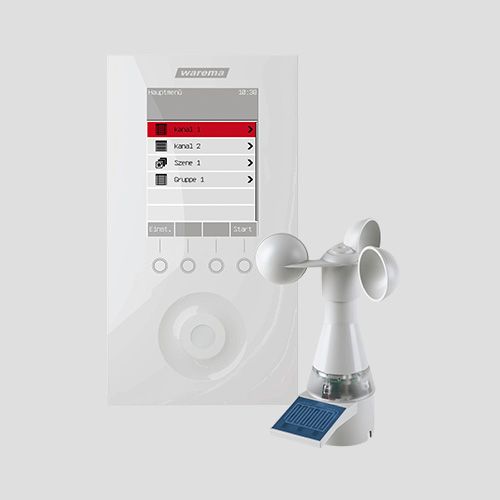

  • Warema Climatronic Control system


    Warema Climatronic® coordinates your sun shading and ventilation systems for perfect room comfort. The high-end sun shading control system monitors humidity, temperature and light intensity and is suitable for both complex residential buildings and large-scale construction projects. Intuitive operation makes it easy to create your personal ideal climate for working and leisure.

    • The control panel for the Warema climatronic® system processes incoming data from connected sensors, coordinates these with the individual settings and forwards commands to the actuators via the climabus
    • Climatronic® can also be operated with Warema WebControl (iOS, Android or native web)
    • One control panel is required per Warema climatronic® system
    • Administration of up to 64 channels per Warema climatronic® system
    • For controlling up to 1,200 actuators (max. 7,200 power consumers)
    • Operation of the connected products is possible individually or in groups
    • Up to 16 scenes can be created for presets e.g. "Evening"
    • Integrated temperature and humidity sensor
    • Two additional sensors for inside temperature/humidity can be connected
    • Slat tracking for external venetian blinds based on the sun's position
    • Up to three Warema climatronic® weather stations or three Warema climatronic® Sensor Interfaces or combined systems (one Warema climatronic® weather station and two Warema climatronic® Sensor Interfaces) can be connected
    • Switching and dimming of light
    • Automatic functions can be activated or deactivated for each channel
    • Four sensor buttons, multifunction wheel and intuitive menu navigation with plain text display
    • Plain text display for events and weather data on a large graphic 5.7" TFT display with lighting
    • Commissioning and settings on the control panel or via Warema climatronic® studio software
    • USB interface for connection to a PC
    • KNX Gateway turns the control panel into a Warema climatronic® KNX central weather unit
  • Minitronic Central Control System


    • 1-channel sun shading control system for controlling roller shutters, fabric products and slat products.
    • 1 floating output (expandable by connecting motor control units)
    • Slat tilting function allows slat products to tilt to a set angle and roller shutters to move to the light slit position after downward movement
    • Control of the sun shading system based on:
      • Brightness
      • Wind speeds
      • Precipitation
    • Operation possible via EWFS Hand-held or Wall-mounted transmitter (optionally available)
    • Compact design enables installation in a flush-mounted box
  • Wisotronic control


    The Wisotronic control system adds sophisticated options for driving roller shutters, fabric blinds and slatted products such as External Venetian Blinds.

    Wisotronic is available in up to 4 channels, which allows four separate groups to be programmed and driven independently. Up to 4 separate "scenes" can be stored to allow for fast user input e.g. "Movie" could close all the blinds in a specific space.

    Control of connected products based on:

    • Brightness
    • Dawn/dusk
    • Wind speeds
    • Precipitation
    • Ice
    • Time
    • Temperature outside
    • Inside temperature
  • Central timer control

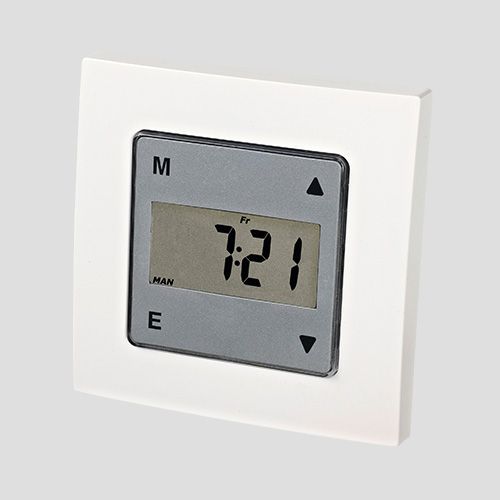

    Time Switch

    A Time Switch is a simple controller that operates blinds according to the time of day. Several models are available that offer the following features:

    • Drive blinds at specific times
    • Drive blinds at dawn and dusk, including the possibility of automatically sensing light levels
    • Drive blinds at random times during holiday periods to give the illusion of the building being occupied

Ask a question or request a quote

We would love to hear from you, ask us a question or request a quote.
